Flame-Retardant & Moisture-Proof Power Transformers

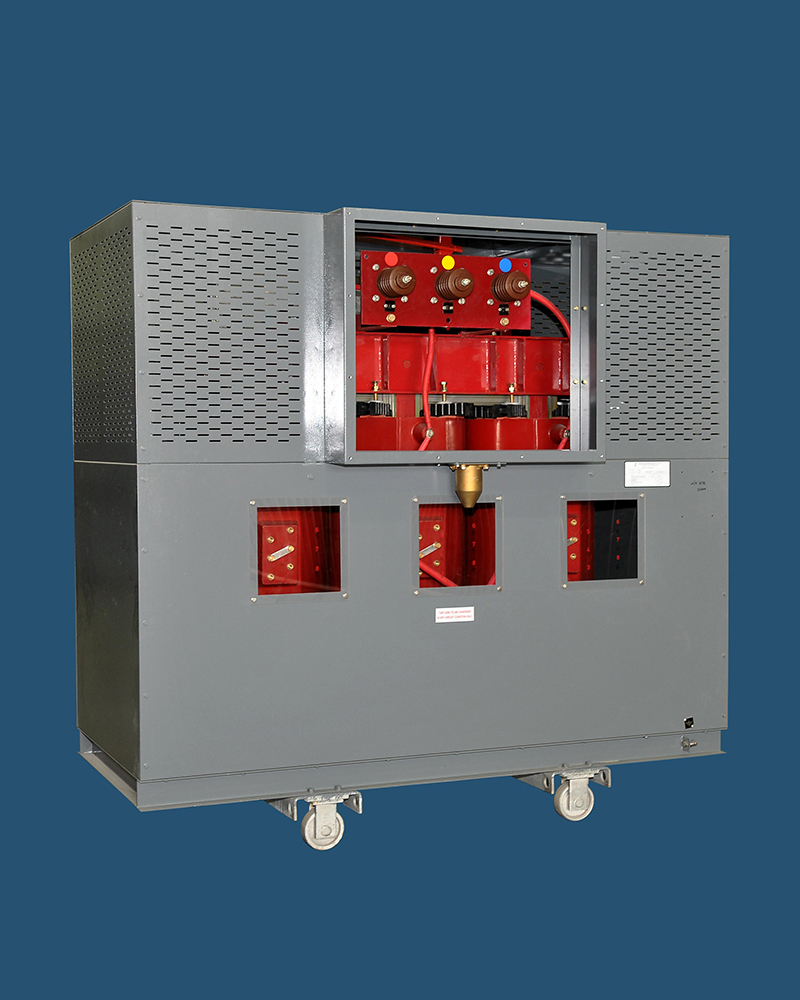

Federal Power Transformers LLC (FPT) manufactures premium-grade Cast Resin Dry Type Transformers engineered specifically for critical applications where fire safety, environmental safety, and maintenance-free operation are paramount. Manufactured in our climate-controlled facility in Abu Dhabi (ICAD 1), UAE, our transformers range from 500 kVA up to 4 MVA with voltage ratings up to 36kV class.
Utilizing state-of-the-art vacuum-pressure impregnation (VPI) and epoxy casting technology, our transformers deliver superior mechanical strength, excellent short-circuit endurance, and low thermal aging. Designed to withstand extreme ambient temperatures and high humidity, they are ideal for global EPC contractors, public utility operators, and commercial developers seeking uncompromised operational reliability.
Technical Highlights
Why Choose Federal Power Cast Resin Transformers?
Maximum Fire Safety
Non-flammable, self-extinguishing epoxy resin casting eliminates oil explosion hazards, conforming to international F1 fire classification requirements.
Environmental & Climatic Resilience
Rated for E2 (Environmental) and C2 (Climatic) conditions, resisting heavy condensation, industrial pollution, and thermal shocks down to extreme ambient levels.
Maintenance-Free Design
Eliminates oil level monitoring, dielectric fluid testing, and oil filtration services, substantially lowering lifetime operational expenditures (OPEX).
Compact & Space Saving
Reduced footprint allows direct indoor installation near load centers, reducing low-voltage cabling losses and civil building construction costs.
High Short-Circuit Resistance
Solid fiberglass-reinforced epoxy resin encapsulation provides exceptional mechanical rigidity during severe short-circuit electromagnetic stresses.
Eco-Friendly & Recyclable
Zero risk of soil or groundwater contamination from oil leaks. Constructed using environmentally sustainable, non-toxic, recyclable insulating materials.
Standard Manufacturing Specifications
Our engineering team can customize dimensions, vector groups, protection enclosures, and terminal arrangements to match exact project specifications.
| Technical Parameter | Standard Specification Range |
|---|---|
| Rated Power Output | 500 kVA to 4,000 kVA (4.0 MVA) |
| Highest Voltage for Equipment (Um) | Up to 36 kV |
| Primary / Secondary Voltage | 3.3 kV, 6.6 kV, 11 kV, 22 kV, 33 kV / 400V - 433V (Custom voltages available) |
| Insulation Class | Class F (155°C) or Class H (180°C) thermal rating |
| Environmental / Climatic / Fire Class | E2 / C2 / F1 Certified |
| Partial Discharge Level | < 10 pC (Exceeds IEC 60076-11 threshold for extended insulation life) |
| Cooling System | Air Natural (AN) / Air Natural Air Forced (ANAF with temperature control) |
| Enclosure Protection Class | IP00 (Unenclosed), IP21, IP23, IP31, IP44 (Indoor / Outdoor steel enclosures) |
| Applicable Manufacturing Standards | IEC 60076-11, ANSI / IEEE C57.12.91, BS EN 60076-11 |
Request Technical Specifications & RFQ
Partner with Abu Dhabi's premier transformer manufacturer. Contact our engineering team today for technical data sheets, dimensional drawings, and competitive procurement quotes.
