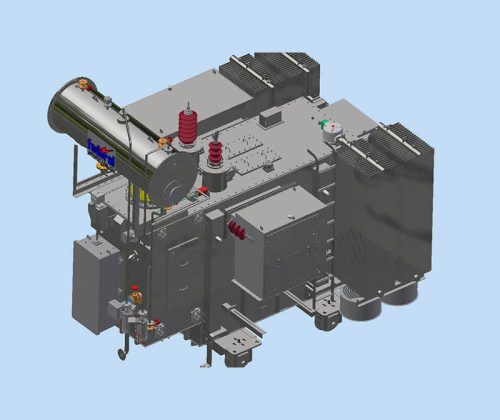

Advanced 3D Engineering & Electromagnetic Simulation
At Federal Power Transformers LLC, engineering innovation is the foundation of our manufacturing excellence. Our experienced design team utilizes state-of-the-art 3D CAD modeling combined with Finite Element Method (FEM) analysis software to simulate and optimize transformer performance prior to production.
By executing full 2D and 3D electrostatic and electromagnetic distribution field analyses, our engineers precisely determine winding geometry, insulation distances, and core clamping structures to prevent localized stress and ensure maximum operational longevity.
Validated Short-Circuit Dynamic Strength
Transformer windings experience immense radial and axial mechanical stress during external short-circuit faults. Our rigorous mathematical calculations and mechanical clamping structures have been verified through successful physical short-circuit testing conducted by KEMA in the Netherlands, proving the robust design integrity of our power transformers under extreme network conditions.

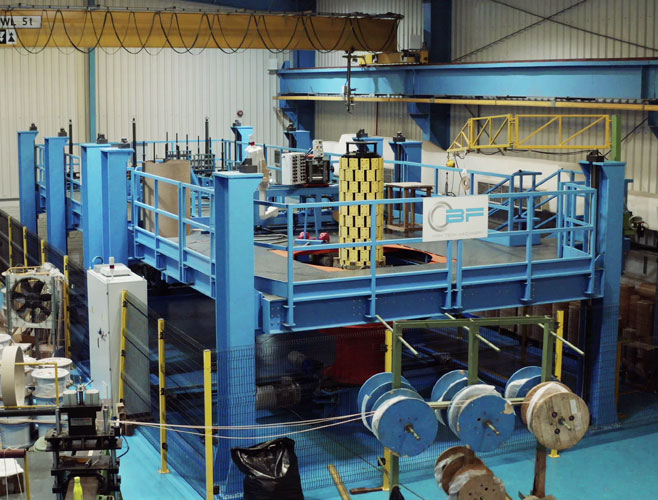

High-Precision Core Cutting & Custom Winding
Our manufacturing plant located in ICAD 1, Abu Dhabi is equipped with automated processing machinery designed to deliver exceptional component accuracy and repeatability.
Mitred Step-Lap Core Fabrication
Core assemblies are constructed using premium-grade, cold-rolled grain-oriented (CRGO) silicon steel laminations conforming to BSEN 10107 and IEC international standards. We utilize precision mitred step-lap joint technology to reduce no-load losses, minimize excitation current, and lower transformer acoustic noise levels.
Winding & Insulation Processing
Windings are fabricated in clean, climate-controlled environments using high-conductivity copper conductors. Pre-dried, electrical-grade insulation board components are pre-shrunk under calibrated axial force pressure to guarantee structural stability against thermal expansion and severe fault stresses.

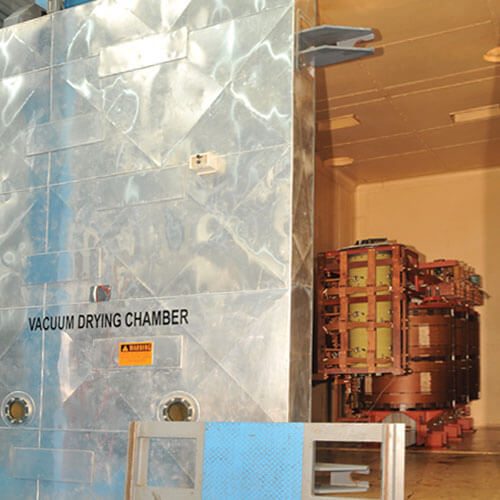

PLC Vacuum Drying & Automated Oil Filling
Moisture control is essential to ensuring high dielectric breakdown strength and long insulation lifespan in power transformers. The complete core-and-coil assembly undergoes deep thermal vacuum drying inside a fully automated PLC-controlled chamber.
After moisture extraction reaches strict PPM limits, the active parts are immediately tanked and filled under high vacuum with degassed electrical insulating oil processed through multi-stage filtration units.
Final Assembly Accessories & Options
We integrate high-reliability accessories certified to international utility standards according to client specifications:
- High-Voltage Bushings: Oil-to-Air Condenser, Oil-to-SF6, Porcelain, Plug-in, and Monoblock configurations
- Conservator System with Hydro-Compensator Airbags for oil preservation
- De-energized Tap Changers (DETC) & On-Load Tap Changers (OLTC)
- Maintenance-Free Dehydrating Silica Gel Breathers
- Advanced On-line Dissolved Gas Analysis (DGA) and Fiber-Optic Temperature Monitoring
ISO/IEC 17025 Accredited High-Voltage Test Laboratory
Quality and compliance are validated inside our independent, ISO/IEC 17025:2017 accredited testing facility. Capable of performing comprehensive routine, type, and special tests for transformers up to 100 MVA, 132kV class in accordance with IEC 60076, ANSI C57, and BS 171 standards.
Dual-Frequency Test Capability
Full testing execution at both 50 Hz and 60 Hz frequencies, meeting utility and industrial power grid specifications worldwide.
2.65 MVA Power Regulator & Capacitor Banks
Full-load temperature rise testing capabilities for power transformers operating up to 100 MVA, 132kV rating.
Haefely Lightning Impulse Test System
Equipped with Haefely HIAS 743 digital impulse analyzing software for full-wave and chopped-wave surge withstand verification.
200Hz Motor-Generator Set
Dedicated high-frequency motor generator system for induced overvoltage and partial discharge testing.
Haefely Precision Tan Delta & Capacitance Bridge
High-precision measurement of insulation dielectric dissipation factor (dissipation angle) and power factor analysis.
Advanced Diagnostic Apparatus
Complete testing set for Sweep Frequency Response Analysis (SFRA), Partial Discharge (PD), acoustic sound level spectrum analysis (Brüel & Kjær), and complete dielectric oil laboratory.
Certified Quality, Environmental & Safety Management
Federal Power Transformers LLC maintains fully integrated management systems verified by international certification bodies and government energy departments across the Middle East and international markets.
ISO 9001:2015
Quality Management SystemISO/IEC 17025:2017
Accredited Testing LaboratoryISO 14001:2015
Environmental ManagementISO 45001:2018
Occupational Health & SafetySchedule a Facility Audit or Request a Technical Quotation
Partner with a trusted UAE transformer manufacturer. Contact our engineering team for technical spec reviews, custom designs, factory acceptance tests (FAT), or site audit requests.
