Transformer Oil Filtration is the controlled removal of water, particles, gases, and other contaminants from insulating oil. In a transformer, the oil cools energized components and helps protect solid insulation. Over time, moisture can enter through seals or breathe with changing temperatures. Fine particles may also accumulate, darkening the oil and reducing confidence in its condition.

Filtration equipment heats and circulates the oil, then separates contaminants through processes such as vacuum dehydration and fine filtration. Operators may watch the oil move through hoses, check temperature and pressure readings, and take samples before and after treatment. The right process depends on laboratory results, equipment design, and the transformer’s operating condition. It is not simply a matter of making oil look clear.

Transformer diagnostics researcher Dr. Tapan K. Saha’s published work addresses transformer condition assessment. A concise paraphrase of the relevant principle is: Oil condition is part of transformer condition. This is a paraphrase, not a verified verbatim quotation. That distinction matters; technical guidance should not rely on invented quotes. Filtration can help restore oil properties, but it cannot repair damaged insulation or explain every abnormal test result. Sometimes the oil looks better, while the underlying problem remains. That is worth remembering. Reliable maintenance pairs treatment with proper sampling, testing, and interpretation by qualified personnel.

What Transformer Oil Filtration Removes: Water, Gas, and Particles

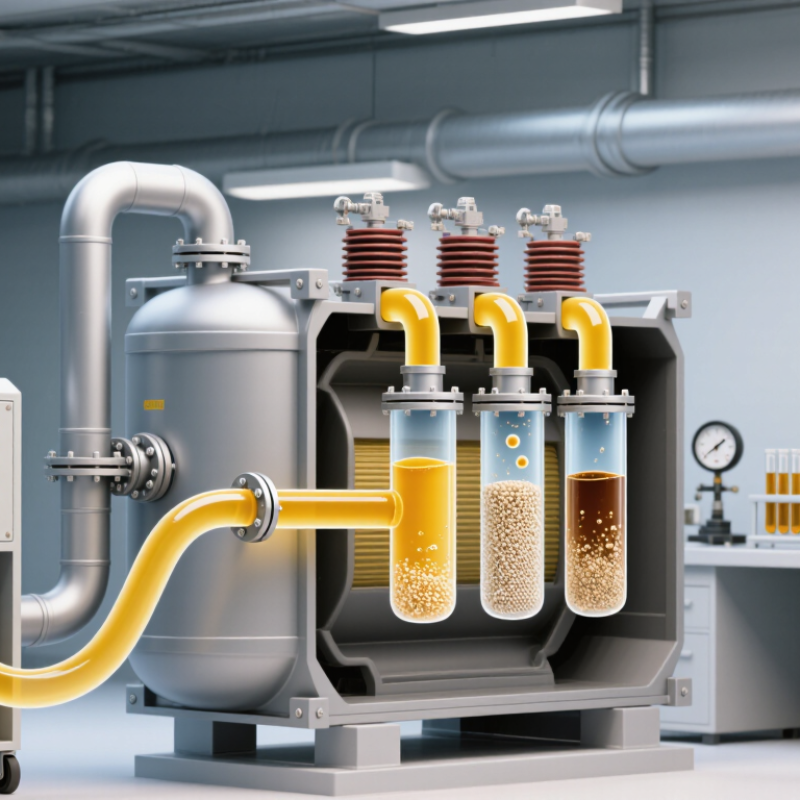

What Is Transformer Oil Filtration?

What Transformer Oil Filtration Removes: Water, Gas, and Particles

Transformer oil helps insulate and cool electrical equipment, but contamination can weaken its performance. Filtration reduces several common contaminants: water, dissolved gases, and solid particles. The exact result depends on the oil’s condition and the treatment equipment used.

Water may enter through leaks, damp air, or aging seals. Some filtration systems heat the oil and use a vacuum to draw out moisture. This matters because water can lower insulation strength and accelerate damage to paper insulation. A clear appearance does not prove the oil is dry. Testing is needed.

Vacuum treatment can also remove dissolved gases, which may form during overheating or electrical faults. Removing them can improve oil condition, but it does not identify or repair the original fault. Fine filters capture particles such as dust, fibers, and small metal fragments. These may come from wear, maintenance, or degraded materials. Still, filtration has limits. It cannot restore damaged insulation or remove every chemical by-product. Before-and-after laboratory tests help show what changed, though sampling errors can muddy the picture.

How Oil Is Sampled and Assessed Under IEC 60422

What Is Transformer Oil Filtration?
How Oil Is Sampled and Assessed Under IEC 60422

Oil assessment begins with a representative sample, not the filter. Take it from a suitable sampling valve using a clean, dry container. Flush the valve and outlet first, then collect the oil without exposing it to moisture or dust. Record the transformer identification, sampling point, date, and operating conditions. Small handling errors can distort results, especially moisture measurements.

IEC 60422 provides guidance for supervising and maintaining mineral insulating oil. Assessment may include visual appearance, breakdown voltage, water content, acidity, and dielectric dissipation factor. No single result tells the whole story. Compare findings with applicable guidance values, the transformer’s history, and earlier samples taken under similar conditions. A clear sample looks reassuring, but appearance alone cannot confirm that the oil is healthy.

Tips: Keep containers sealed and label them immediately. Avoid sampling just after filtration if you need a baseline. In practice, sampling is often the less glamorous weak link—and easy to rush. If results seem unusual, check the sampling record and consider a repeat sample before deciding what the oil needs.

How Heating and Vacuum Dehydration Remove Water and Dissolved Gas

How Fine Filtration Captures Particles Before Oil Returns to the Tank

Transformer oil filtration removes contaminants that can weaken insulation and restrict heat transfer. During fine filtration, oil passes through filter elements with controlled pore sizes. These elements capture suspended particles such as dust, fibers, and traces of metal. The cleaned oil then returns to the tank. Small particles matter. A technician may notice them only through oil sampling or a rising filter pressure reading.

Tips: Check the filter’s rated fineness and monitor pressure across the element during operation. A sudden increase can signal loading or restricted flow. Take oil samples before and after treatment when practical. Filtration performance depends on the equipment, oil condition, and operating method; a filter alone does not remove every contaminant.

Good practice also means keeping transfer hoses and fittings clean. Otherwise, debris can enter the oil again after filtration. Record operating temperatures, flow rate, and filter changes, since these details help explain inconsistent results. Fine filtration is useful, but it is not magic. Very small particles may remain, and moisture or dissolved gases may require separate treatment. Even experienced operators can miss a source of contamination, so inspect the tank and handling process as well as the filter.

How IEC 60156 Tests Dielectric Strength Using a 2.5 mm Electrode Gap

FAQS

Conclusion

Transformer Oil Filtration is a maintenance process that helps restore insulating oil by reducing moisture, dissolved gases, and suspended particles. Oil is sampled and assessed in line with IEC 60422 guidance to understand its condition and determine whether treatment is needed. The assessment helps identify contamination and establish a basis for checking the oil after processing.

During treatment, controlled heating and vacuum dehydration encourage water and dissolved gas to separate from the oil. Fine filtration then captures solid particles before the treated oil is returned to the transformer tank. Dielectric strength can be evaluated using the IEC 60156 test method, which applies a 2.5 mm electrode gap to assess the oil’s ability to withstand electrical stress. Together, these steps support informed oil maintenance and help monitor insulating performance.
